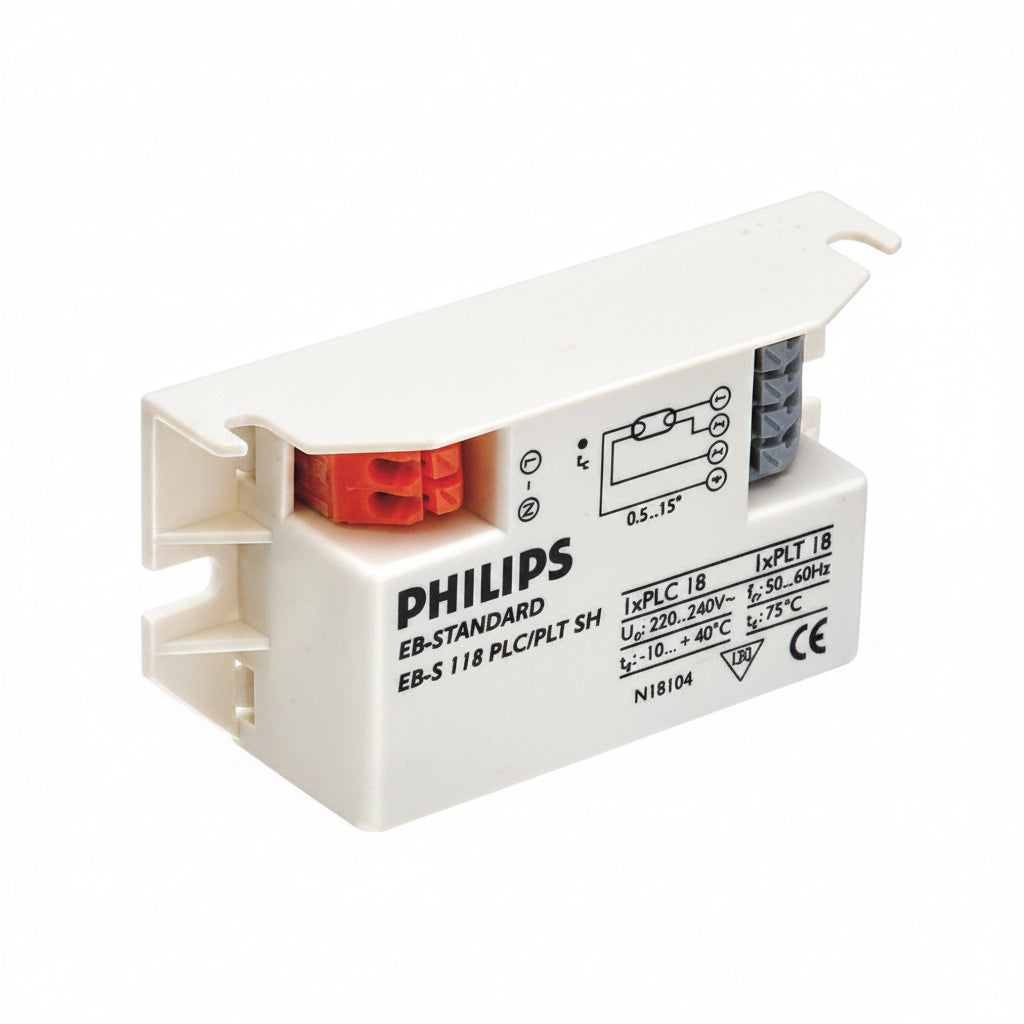

Philips EBS 118 230 SH UV Lamp Ballast Choke for UV Lamps
- Efficient UV Lamp Ballast
- Supports TUV 4W–20W
- Compact, Lightweight Square Design
- Warm Start, Auto Restart
- Ideal for Disinfection Systems
Authorised dealer of Philips Lighting
About this item
Philips EBS 118 230 SH UV Lamp Ballast | Micropower Electronic Ballast for TL/PL-S/PL-C Lamps | Energy-Efficient Choke for Germicidal and UVC Lamps | Compact and Lightweight Design
Upgrade your UV and fluorescent lighting systems with the high-performance Philips EBS 118 230 SH Electronic Ballast. Designed for efficiency, reliability, and long lamp life, this micropower electronic ballast is ideal for TL and PL-S/PL-C lamps used in germicidal, medical, and commercial applications.
Engineered with advanced high-frequency technology, it ensures stable lamp operation, reduced energy consumption, and smooth warm start ignition. Its compact and lightweight design allows easy integration into a wide range of UV disinfection fixtures and lighting systems.
Perfect for professional UV-C setups, this ballast delivers consistent performance while improving energy efficiency and extending lamp lifespan compared to conventional electromagnetic chokes.
Key Features
- Suitable for single UV lamps (TUV 4W to 20W range)
- Energy-efficient electronic operation with reduced power loss
- Warm start ignition for safer and longer lamp life
- High-frequency operation for stable performance
- Compact, lightweight square design for easy installation
- Automatic restart for improved system reliability
- Optimized for UV-C germicidal applications
Compatible Lamps
Designed for single-lamp operation with:
- TUV 4W
- TUV 6W
- TUV 8W
- TUV 11W
- TUV 15W
- TUV 16W
- TUV 20W
Specifications
| Specification | Details |
|---|---|
| Brand | Philips |
| Model | EBS 118 230 SH (EBS118) |
| Product Type | Electronic UV Lamp Ballast |
| Input Voltage | 220–240V AC |
| Input Frequency | 50/60 Hz |
| Operating Frequency | ≥ 42 kHz |
| Power Factor | 0.6 at 100% load |
| Crest Factor | Max 1.85 |
| Ignition Method | Warm Start |
| Ignition Time | Max 1 second |
| Power Loss | ~3.5W (nominal) |
| Voltage Range (Operating) | 221–254V |
| Voltage Range (Safety) | 216–264V |
| Compatibility | TL / PL-S / PL-C UV lamps |
| Lamp Type | Germicidal / UV-C Lamps |
| Housing | Compact Electronic Module |
Applications
- UV-C germicidal disinfection systems
- Water purification units
- Air sterilization systems
- Medical and laboratory equipment
- Commercial fluorescent lighting systems
- Industrial sanitation setups
Why Choose Philips EBS 118 230 SH?
The Philips EBS 118 230 SH electronic ballast offers a reliable and energy-efficient solution for UV-C lighting systems. With its warm start technology, compact design, and optimized lamp compatibility, it ensures stable performance, longer lamp life, and reduced operating costs—making it ideal for professional-grade disinfection and lighting applications.
Model: EBS 118 230 SH (EBS118)
Brand: Philips
