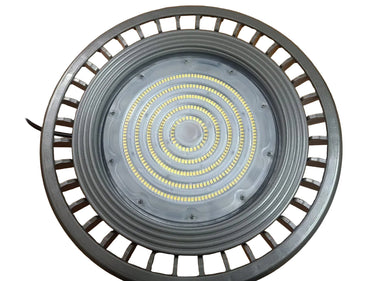

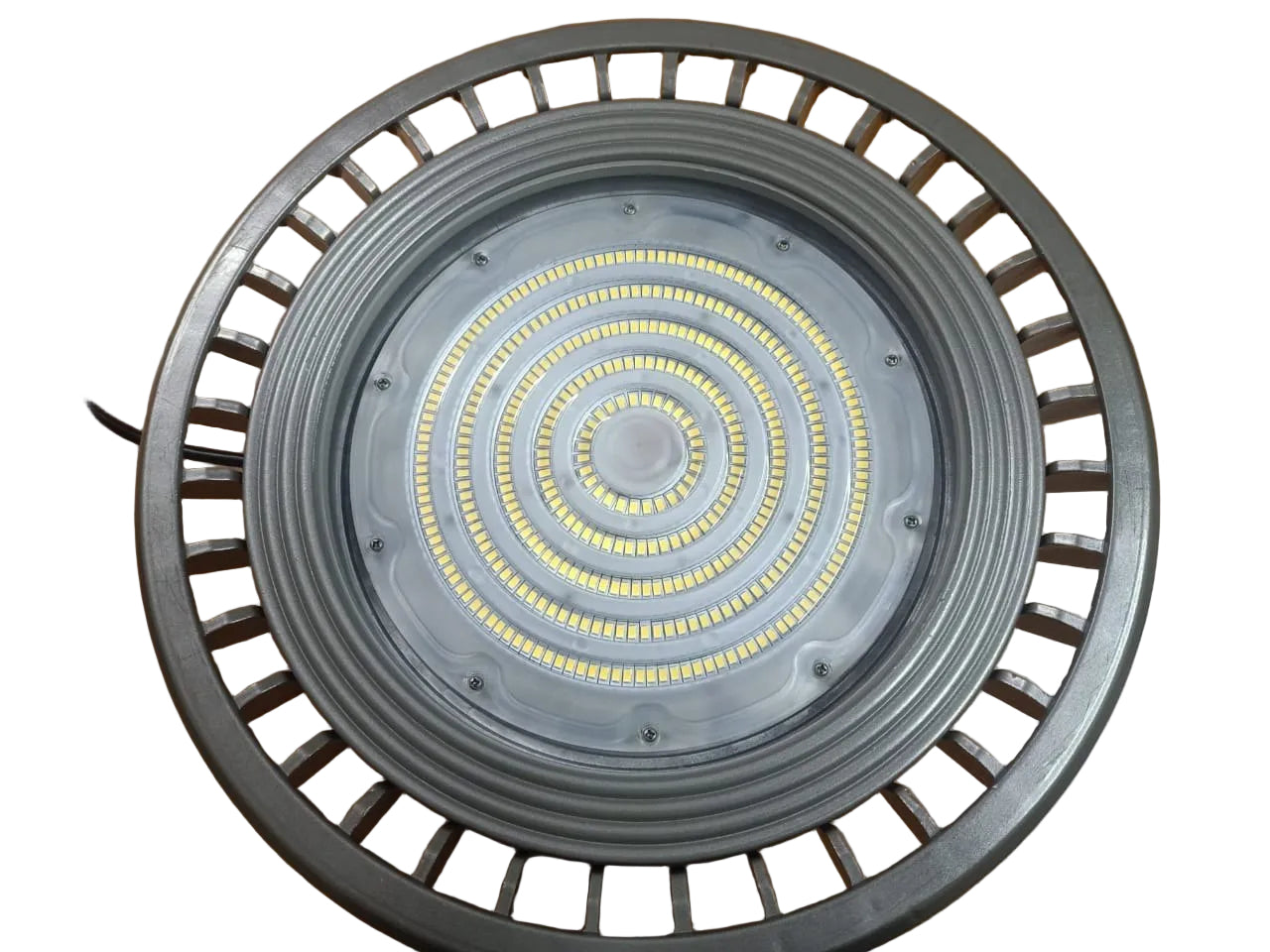

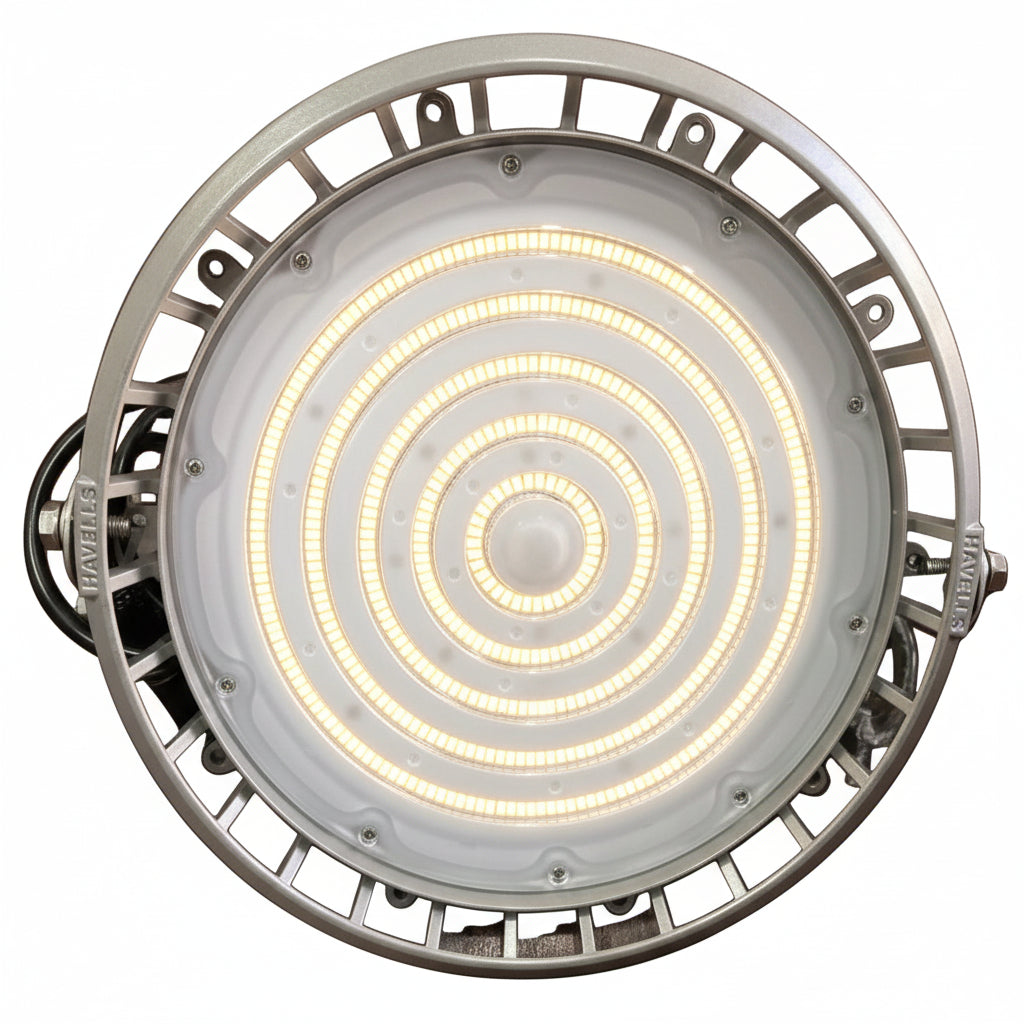

Havells Saucer GenX DD P 150W LED High Bay Light (ADV X2) 5700K Cool White | Narrow Beam

Rs. 13,000.00 Rs. 5,950.00 Save 54%
  • High brightness 20000 lumens output
  • Energy efficient 150W LED highbay
  • Narrow beam focused industrial illumination
  • 6kV surge protected stable operation
  • Long life 50000 hours durability

Authorised  dealer of Philips Lighting

About This Item

Havells Saucer GenX DD P 150W LED High Bay Light (ADV X2) | 20000 lm | 5700K Cool White | Narrow Beam | 6kV Surge Protection | Industrial Warehouse Lighting

Technical Specification:-

Specification Details
Brand Havells
Model Saucer GenX DD P (ADV X2)
Product Type LED High Bay Light
System Power 150 W
Luminous Flux 20,000 lm
Color Temperature 5700 K
Light Color Cool White
Beam Angle Narrow Beam
Nominal Voltage 240 V
Operating Voltage Range 140 – 270 V
Mains Current 0.660 A
Power Factor ≥0.95
THD ≤10%
CRI ≥70
Surge Protection Up to 6 kV
Rated Ambient Temperature -10°C to +50°C
Lifespan 50,000 Hours (L70B50)
Diameter 292 mm
Height 182 mm
Weight 3.5 kg
Mounting Type Suspension (Heavy Duty Eyebolt)


The Havells Saucer GenX DD P 150W LED High Bay Light (ADV X2) is a high-efficiency industrial luminaire designed for large indoor spaces such as warehouses, factories, and manufacturing facilities. Built with advanced LED technology, it delivers powerful illumination of up to 20,000 lumens, ensuring excellent brightness and visibility in high-ceiling environments.

Engineered for energy efficiency and durability, this LED high bay offers a high power factor ≥0.95, low THD ≤10%, and operates reliably within a wide voltage range of 140V–270V. The luminaire is equipped with surge protection up to 6kV, protecting it from voltage fluctuations and unstable power conditions.

Designed for industrial performance, the fixture provides photobiologically safe LEDs, instant start, and low operating temperature, ensuring reliable and safe operation in demanding environments. With an average lifespan of up to 50,000 hours (L70B50), the Saucer GenX reduces maintenance costs and downtime.

Its heavy-duty eyebolt suspension mounting system allows easy installation in high-bay applications such as cement plants, steel plants, warehouses, and assembly lines.

Key Features

  • High Power Industrial Lighting: 150W LED high bay for large spaces

  • High Brightness: 20,000 lumens output for powerful illumination

  • Energy Efficient: High power factor ≥0.95 with low THD ≤10%

  • Durable Performance: Average life 50,000 hours (L70B50)

  • Wide Voltage Operation: Works from 140V – 270V

  • Surge Protection: Built-in protection up to 6 kV

  • Environment Friendly: No Mercury, No UV or IR radiation

  • Instant Start: Immediate full brightness with low heat generation

  • Industrial Mounting: Heavy-duty eyebolt suspension installation

Ideal Applications

  • Warehouses

  • Cement Plants

  • Steel Plants

  • Factories & Assembly Lines

  • Toll Plazas

  • Industrial Workshops

  • Large Indoor Manufacturing Facilities

Benefits

  • High brightness for high-ceiling areas ensuring clear visibility

  • Energy efficient LED technology reduces electricity consumption

  • Long operational life lowers maintenance and replacement costs

  • Wide voltage compatibility for stable operation in industrial environments

  • Environmentally friendly lighting without mercury or harmful radiation

  • Reliable industrial design suitable for heavy-duty applications

We offer a 7-Day Conditional Return & Exchange Policy on most of our products.

Subtle Sophistication, Radiant Results

Let Lighting transform your space with understated brilliance. Lighting redefines elegance with lighting solutions that blend seamlessly into any décor. Designed for modern spaces, our lights offer understated style while delivering powerful, radiant illumination.

Choose the Right Light Color

Choose the perfect lighting for your space! Our LED solutions offer colour temperatures ranging from 3000K to 6500K. For a cosy, warm glow, go with 3000K. If you prefer a bright, cool white lighting, then 6500K is the way to go. For Natural white go with 4000K.

Frequently Asked Questions

Get Your Queries Answered

Fundamental Lighting Terms

Lumen (lm):

A lumen is the unit of luminous flux, representing the total amount of visible light emitted by a light source.

Efficacy (lm/W):

Efficacy measures how efficiently a lighting source converts electrical power (watts) into visible light (lumens). Higher efficacy indicates better performance. For example, LEDs can exceed 150 lm/W, whereas traditional incandescent lamps (GLS) offer around 10 lm/W, and compact fluorescent lamps (CFLs) about 60 lm/W.

Lux (lm/m²):

Lux is the unit of illuminance and indicates the amount of luminous flux distributed over a given area (lumens per square meter). Different applications require different lux levels; for instance, task-oriented areas such as kitchens or sewing stations demand higher lux values than general areas like corridors or lobbies.

Correlated Color Temperature (CCT, °K):

CCT describes the color appearance of a light source, expressed in degrees Kelvin (K). Light can range from warm (yellowish), to neutral (off-white), to cool (bluish white), depending on its temperature rating.

Color Rendering Index (CRI):

CRI measures the ability of a light source to render colors accurately compared to natural light. A high CRI (close to 100) indicates that objects appear more true to life, similar to how they would look under sunlight. A lower CRI may cause colors to appear distorted or unnatural.

Beam Angle:

Beam angle refers to the spread of light emitted from a source. A narrow beam (e.g., spotlights) provides focused illumination, ideal for highlighting specific features. A wider beam is better suited for general lighting, creating a more diffuse and ambient effect.
What is LED Lighting?

LED lighting refers to the use of Light Emitting Diodes (LEDs) as a source of illumination. An LED is a semiconductor device that emits light when an electric current passes through it. Unlike traditional lighting technologies such as incandescent or fluorescent lamps, LEDs do not rely on filaments or gas discharge to produce light.

LED lighting is known for its high energy efficiency, long lifespan, durability, and low maintenance requirements. It is available in a wide range of color temperatures, intensities, and form factors, making it suitable for a variety of residential, commercial, and industrial applications.
Benefits of LED Lighting

a. Energy Efficiency:

LEDs consume up to 50% less energy than CFLs, resulting in substantial energy savings and lower electricity bills.

b. Long Lifespan:

LED lights have an exceptionally long operational life, often exceeding 50,000 hours, which greatly reduces maintenance and replacement costs.

c. No Harmful Emissions:

LEDs do not emit ultraviolet (UV) or infrared (IR) radiation, making them safer for sensitive materials and human health.

d. Environmentally Friendly:

LEDs are free from hazardous substances such as mercury, making them a safer and more eco-friendly lighting option.

e. Versatile Color Options:

LED technology allows for the production of millions of color variations, enabling dynamic and customizable lighting solutions for various applications.
How LEDs life is defined?

Unlike conventional lamps that tend to fail suddenly, LEDs gradually depreciate in light output over time. The lifespan of an LED is typically defined by the point at which its luminous flux decreases to 70% of its original output—commonly referred to as L70. This gradual decline ensures more predictable performance and allows for timely maintenance or replacement planning.
Significance of 50000 hrs life

4 hr daily operation : 34 yrs

8 hr daily operation : 17 yrs

12 hr daily operation : 11 yrs

24 hr daily operation : 05 yrs
Challenges with LED Lighting

LEDs are very sensitive to temperature & also produce a lot of heat during operation. This heat should be removed from system to maintain the junction temperature within prescribed limits.

LED are point sources so are prone to cause glare if the optics is not properly designed.
What is the role of heat sink?

Heat sink is required to dissipated heat generated by LEDs during operation. Since ambient temperature in India varies from – 5 0C to + 55 0C so the heat sink design should ensure effective thermal management under all circumstances. It should be made of high grade aluminum & should have no pores (like in gravity die cast heat sinks) providing resistance to heat flow. Garnet uses aluminum pressure die cast or extrusion heat sinks.
