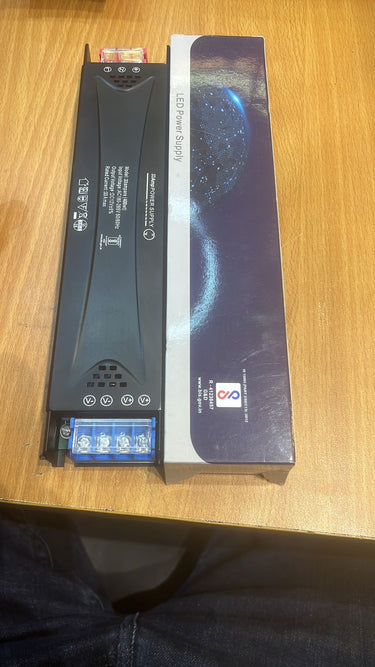

Orangevolt 400W LED Power Supply 33A | 12V DC Driver Transformer | Heavy Duty SMPS for LED Strip, CCTV & Signage
- High power 400W heavy duty performance
- 33 amp capacity supports high loads
- Stable 12V DC consistent output
- Wide input voltage fluctuation protection
- Advanced safety overload short circuit protection
- Durable metal body long lasting build
Authorised dealer of Philips Lighting
About This Item
Orangevolt 400W LED Power Supply 33A | 12V DC Driver Transformer | Heavy Duty SMPS for LED Strip, CCTV & Signage
Technical Specification
| Specification | Details |
|---|---|
| Brand | Orangevolt |
| Product Type | LED Power Supply / SMPS |
| Model | 33 Amp (400W) |
| Input Voltage | AC 180-265V, 50/60Hz |
| Output Voltage | DC 12V ±5% |
| Rated Current | 33 Amp (Max) |
| Power Capacity | 400 Watts |
| Usage | Indoor / Commercial |
| Build Type | Heavy Duty Metal Body |
| Warranty | 1-Year |
The Orangevolt 400W LED Power Supply (33A) is a high-performance and reliable SMPS driver designed to deliver stable and efficient power for various LED lighting and electronic applications. With a 12V DC output and 33 Amp capacity, this power supply is ideal for running high-load LED strips, CCTV systems, signage boards, and industrial lighting setups.
Engineered for durability, it supports a wide input voltage range of AC 180-265V, ensuring consistent performance even with voltage fluctuations. The robust build quality and advanced circuitry provide protection against overload, short circuit, and overheating, making it a dependable choice for long-term use.
Perfect for both residential and commercial installations, this power supply guarantees efficient energy conversion, stable output, and enhanced safety.
Key Features
- High Power Output (400W) – Suitable for heavy-duty LED applications
- 33 Amp Current Capacity – Supports high load systems efficiently
- Stable 12V DC Output – Ensures consistent performance
- Wide Input Voltage Range – Works between AC 180-265V
- Advanced Protection – Safeguards against overload, short circuit & overheating
- Energy Efficient Design – Optimized power conversion
- Durable Metal Body – Strong and long-lasting construction
- Easy Installation – User-friendly wiring and setup
Ideal For
- LED Strip Lighting – High power strip installations
- CCTV Camera Systems – Stable power backup
- LED Sign Boards – Reliable continuous operation
- Retail & Showroom Lighting – Heavy load usage
- Industrial Applications – Consistent power supply
Benefits
- Reliable Performance – Stable voltage for long-lasting operation
- Handles High Load Easily – Ideal for large setups
- Improved Safety – Built-in protection features
- Energy Efficient – Reduces power loss
- Versatile Applications – Suitable for multiple uses
- Long Lifespan – Durable and robust construction
Subtle Sophistication, Radiant Results
Let Lighting transform your space with understated brilliance. Lighting redefines elegance with lighting solutions that blend seamlessly into any décor. Designed for modern spaces, our lights offer understated style while delivering powerful, radiant illumination.
Choose the Right Light Color
Choose the perfect lighting for your space! Our LED solutions offer colour temperatures ranging from 3000K to 6500K. For a cosy, warm glow, go with 3000K. If you prefer a bright, cool white lighting, then 6500K is the way to go. For Natural white go with 4000K.
Frequently Asked Questions
Get Your Queries Answered
Fundamental Lighting Terms
Lumen (lm):
A lumen is the unit of luminous flux, representing the total amount of visible light emitted by a light source.
Efficacy (lm/W):
Efficacy measures how efficiently a lighting source converts electrical power (watts) into visible light (lumens). Higher efficacy indicates better performance. For example, LEDs can exceed 150 lm/W, whereas traditional incandescent lamps (GLS) offer around 10 lm/W, and compact fluorescent lamps (CFLs) about 60 lm/W.
Lux (lm/m²):
Lux is the unit of illuminance and indicates the amount of luminous flux distributed over a given area (lumens per square meter). Different applications require different lux levels; for instance, task-oriented areas such as kitchens or sewing stations demand higher lux values than general areas like corridors or lobbies.
Correlated Color Temperature (CCT, °K):
CCT describes the color appearance of a light source, expressed in degrees Kelvin (K). Light can range from warm (yellowish), to neutral (off-white), to cool (bluish white), depending on its temperature rating.
Color Rendering Index (CRI):
CRI measures the ability of a light source to render colors accurately compared to natural light. A high CRI (close to 100) indicates that objects appear more true to life, similar to how they would look under sunlight. A lower CRI may cause colors to appear distorted or unnatural.
Beam Angle:
Beam angle refers to the spread of light emitted from a source. A narrow beam (e.g., spotlights) provides focused illumination, ideal for highlighting specific features. A wider beam is better suited for general lighting, creating a more diffuse and ambient effect.
What is LED Lighting?
LED lighting refers to the use of Light Emitting Diodes (LEDs) as a source of illumination. An LED is a semiconductor device that emits light when an electric current passes through it. Unlike traditional lighting technologies such as incandescent or fluorescent lamps, LEDs do not rely on filaments or gas discharge to produce light.
LED lighting is known for its high energy efficiency, long lifespan, durability, and low maintenance requirements. It is available in a wide range of color temperatures, intensities, and form factors, making it suitable for a variety of residential, commercial, and industrial applications.
Benefits of LED Lighting
a. Energy Efficiency:
LEDs consume up to 50% less energy than CFLs, resulting in substantial energy savings and lower electricity bills.
b. Long Lifespan:
LED lights have an exceptionally long operational life, often exceeding 50,000 hours, which greatly reduces maintenance and replacement costs.
c. No Harmful Emissions:
LEDs do not emit ultraviolet (UV) or infrared (IR) radiation, making them safer for sensitive materials and human health.
d. Environmentally Friendly:
LEDs are free from hazardous substances such as mercury, making them a safer and more eco-friendly lighting option.
e. Versatile Color Options:
LED technology allows for the production of millions of color variations, enabling dynamic and customizable lighting solutions for various applications.
How LEDs life is defined?
Unlike conventional lamps that tend to fail suddenly, LEDs gradually depreciate in light output over time. The lifespan of an LED is typically defined by the point at which its luminous flux decreases to 70% of its original output—commonly referred to as L70. This gradual decline ensures more predictable performance and allows for timely maintenance or replacement planning.
Significance of 50000 hrs life
4 hr daily operation : 34 yrs
8 hr daily operation : 17 yrs
12 hr daily operation : 11 yrs
24 hr daily operation : 05 yrs
Challenges with LED Lighting
LEDs are very sensitive to temperature & also produce a lot of heat during operation. This heat should be removed from system to maintain the junction temperature within prescribed limits.
LED are point sources so are prone to cause glare if the optics is not properly designed.
What is the role of heat sink?
Heat sink is required to dissipated heat generated by LEDs during operation. Since ambient temperature in India varies from – 5 0C to + 55 0C so the heat sink design should ensure effective thermal management under all circumstances. It should be made of high grade aluminum & should have no pores (like in gravity die cast heat sinks) providing resistance to heat flow. Garnet uses aluminum pressure die cast or extrusion heat sinks.
