Philips CR652B G2 LED60S-6500 PSU BO | 60W 2x2 Waterproof LED Cleanroom Panel Light | IP65 Rated | Cool Daylight 6500K | Recessed Ceiling Panel for Hospitals, Labs, & Hygienic Areas
- 60W waterproof LED panel
- Cool white light 6500K output
- 60x60 cm compact design
- Glare-free uniform light distribution
- Ideal for commercial indoor lighting
Authorised dealer of Philips Lighting
Product Description

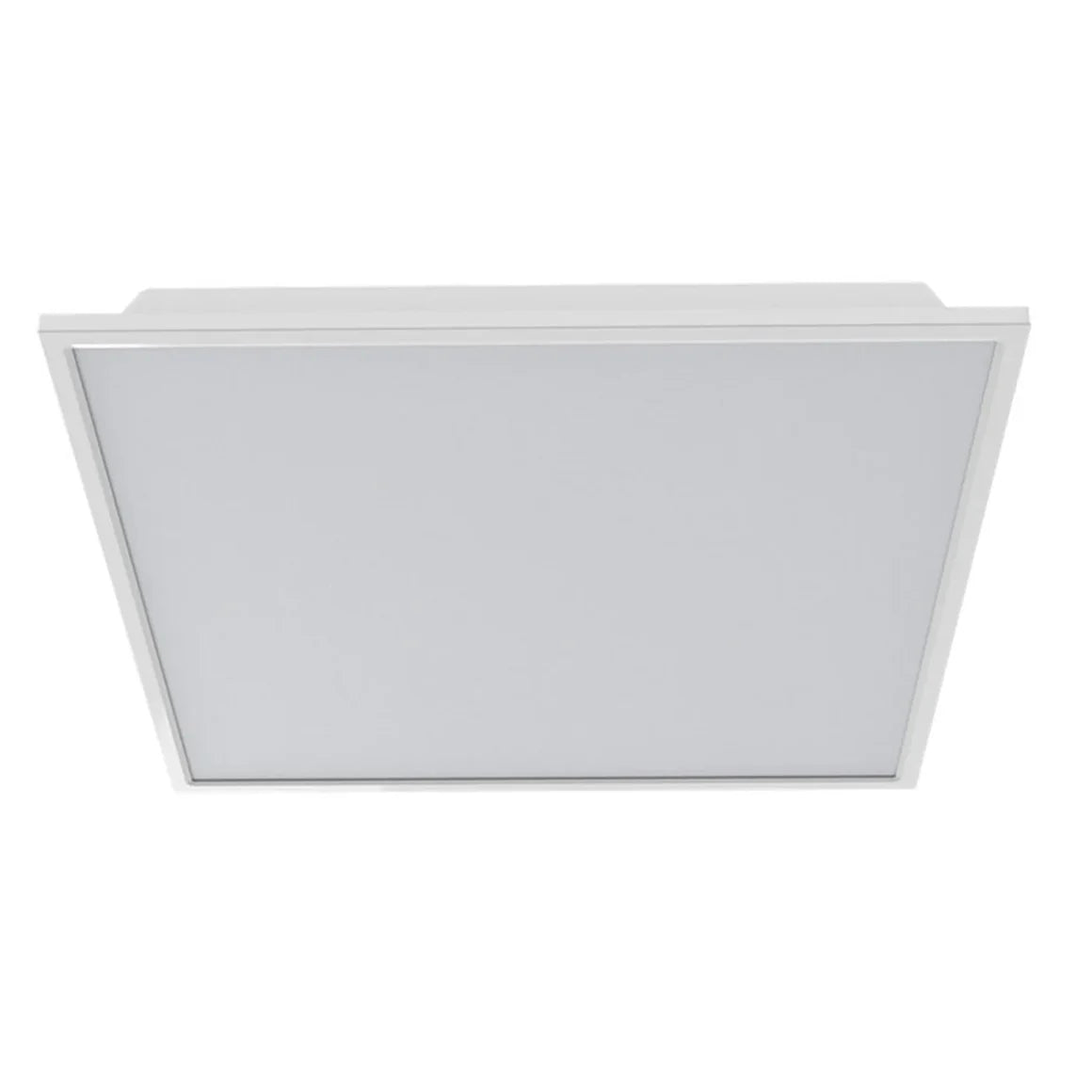

The Philips CR652B G2 LED60S-6500 PSU BO W60L60WH (919615896511) is a next-generation 60W Cleanroom LED Panel Light engineered for high-performance lighting in controlled and sterile environments. Designed with a bottom-opening (BO) construction and a 600 × 600 mm (2×2 ft) recessed format, this luminaire delivers bright, uniform 6500K Cool Daylight illumination while meeting the demanding hygiene requirements of hospitals, pharmaceutical facilities, laboratories, and clean manufacturing areas.
Specifications
| Specification | Details |
|---|---|
| Brand | Philips |
| Product Name | CR652B G2 LED60S-6500 PSU BO W60L60WH |
| Order Code | 919615896511 |
| Product Type | Cleanroom LED Panel Light |
| Series | CR652B G2 PureSpace |
| Power Consumption | 60W |
| Panel Size | 600 × 600 mm |
| Panel Format | 2 × 2 Feet |
| Shape | Square |
| Mounting Type | Recessed Ceiling |
| Construction Type | Bottom Opening (BO) |
| Light Source | Integrated LED |
| Light Colour | Cool Daylight |
| Colour Temperature | 6500K |
| Power Supply | Integrated PSU |
| IP Rating | IP65 |
| Waterproof | Yes |
| Dustproof | Yes |
| Cleanroom Compatible | Yes |
| Surface Design | Smooth Sealed Hygienic Surface |
| Lighting Distribution | Uniform, Glare-Controlled Illumination |
| Flicker-Free | Yes |
| Energy Efficient | Yes |
| Heat Generation | Low |
| Maintenance | Low Maintenance |
| Suitable Ceiling | Standard 600 × 600 mm Grid Ceiling |
| Applications | Cleanrooms, Hospitals, Pharmaceutical Plants, Biotech Labs, Food Processing Units, R&D Centres, Electronics Manufacturing |
Its IP65-rated sealed construction protects against dust and water ingress, making it suitable for cleanrooms and wash-down areas. The smooth, hygienic surface is easy to clean and helps maintain sterile conditions. Equipped with an integrated Power Supply Unit (PSU), the panel provides stable, flicker-free illumination with excellent energy efficiency and low maintenance.
Built to Philips' professional lighting standards, the CR652B G2 offers long operational life, low heat generation, and consistent performance, making it an ideal solution for mission-critical environments where reliability and visual comfort are essential.
Key Features
- 60W high-efficiency integrated LED for powerful illumination
- 6500K Cool Daylight for excellent visibility and precision tasks
- 600 × 600 mm (2×2 ft) recessed cleanroom panel

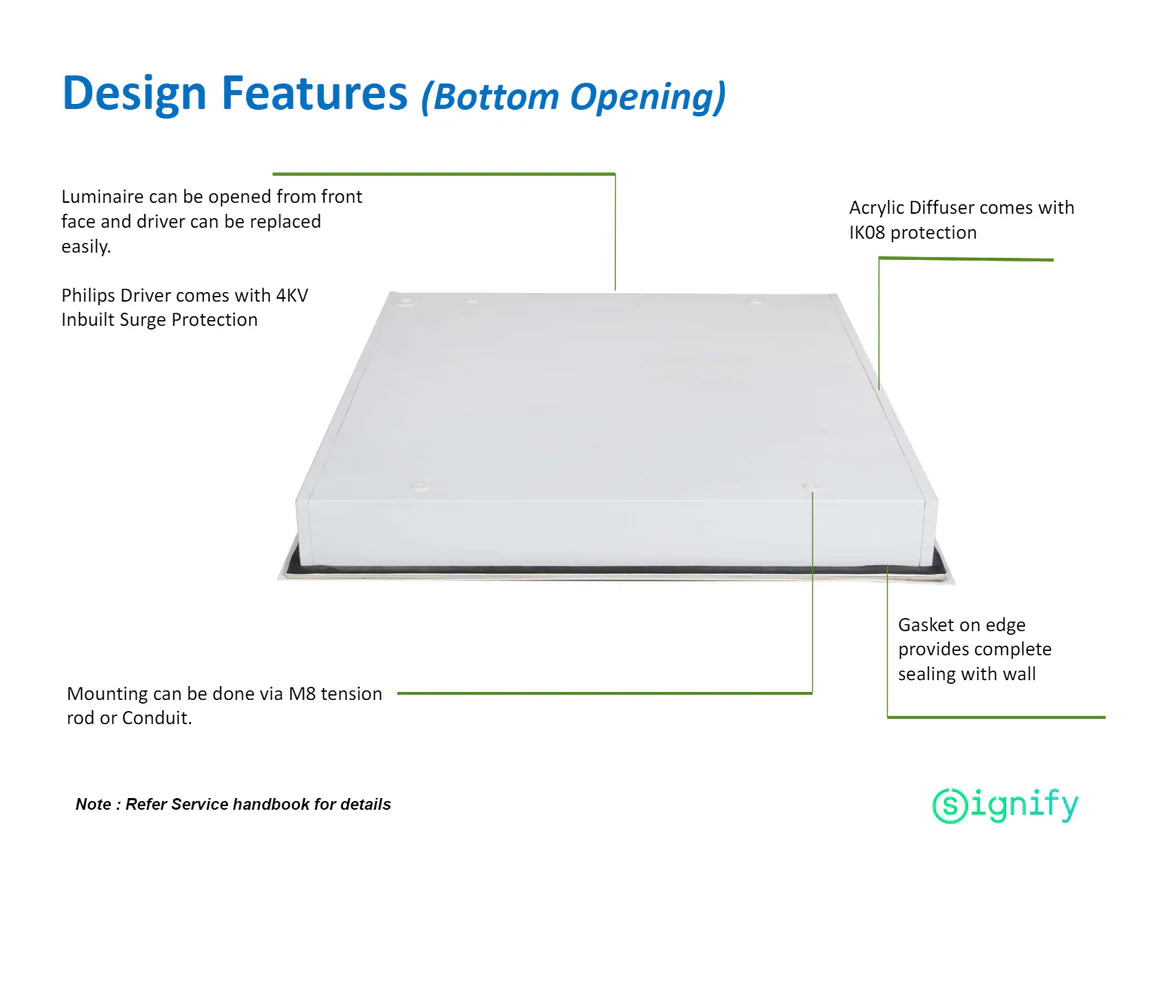

- Bottom Opening (BO) design for easy servicing
- IP65 waterproof and dustproof sealed construction
- Hygienic smooth surface for easy cleaning
- Integrated PSU (Power Supply Unit) for reliable performance
- Flicker-free illumination for enhanced visual comfort
- Energy-efficient operation with low maintenance
- Designed for hospitals, laboratories, pharmaceutical plants, and clean manufacturing facilities
Applications
The Philips CR652B G2 Cleanroom LED Panel is ideal for:
- Hospitals & Operation Theatres
- Pharmaceutical Manufacturing
- Biotechnology Laboratories
- Research & Development Centres
- Food & Beverage Processing Plants
- Medical Laboratories
- Electronics & Semiconductor Manufacturing
- Cleanrooms and Sterile Production Areas
- Healthcare Facilities
- Controlled Industrial Environments
Package Includes
- 1 × Philips CR652B G2 LED60S-6500 PSU BO W60L60WH Cleanroom LED Panel Light
- Integrated Power Supply Unit (PSU)
- Installation Guide
Why Choose Philips CR652B G2?

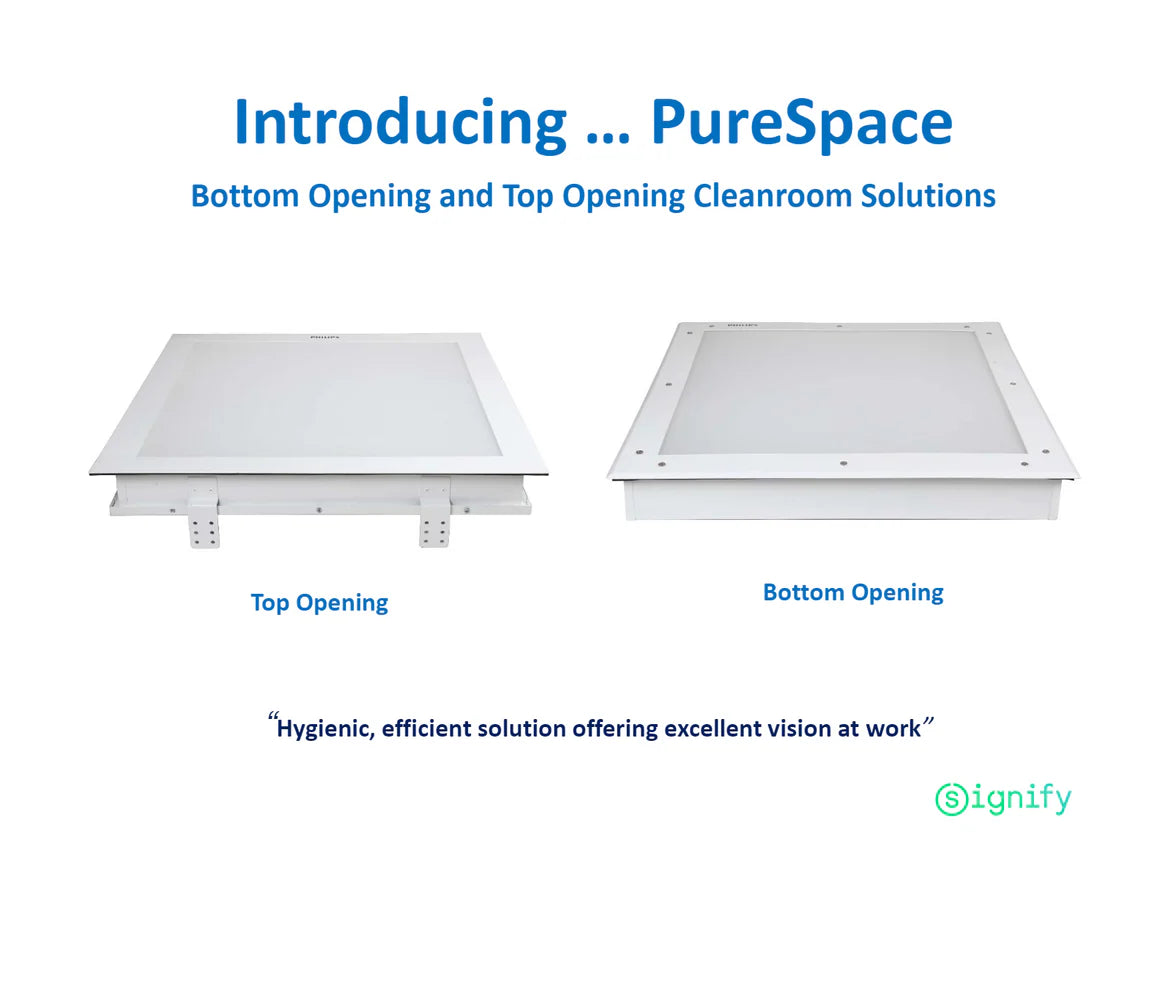

The Philips CR652B G2 PureSpace series is purpose-built for environments where cleanliness, reliability, and lighting quality are critical. With its IP65 protection, bottom-opening serviceable design, uniform glare-controlled illumination, and energy-efficient LED technology, it delivers dependable performance for cleanroom and healthcare applications while minimizing maintenance and operating costs.
Subtle Sophistication, Radiant Results
Let Lighting transform your space with understated brilliance. Lighting redefines elegance with lighting solutions that blend seamlessly into any décor. Designed for modern spaces, our lights offer understated style while delivering powerful, radiant illumination.
Choose the Right Light Color
Choose the perfect lighting for your space! Our LED solutions offer colour temperatures ranging from 3000K to 6500K. For a cosy, warm glow, go with 3000K. If you prefer a bright, cool white lighting, then 6500K is the way to go. For Natural white go with 4000K.
Frequently Asked Questions
Get Your Queries Answered
Fundamental Lighting Terms
Lumen (lm):
A lumen is the unit of luminous flux, representing the total amount of visible light emitted by a light source.
Efficacy (lm/W):
Efficacy measures how efficiently a lighting source converts electrical power (watts) into visible light (lumens). Higher efficacy indicates better performance. For example, LEDs can exceed 150 lm/W, whereas traditional incandescent lamps (GLS) offer around 10 lm/W, and compact fluorescent lamps (CFLs) about 60 lm/W.
Lux (lm/m²):
Lux is the unit of illuminance and indicates the amount of luminous flux distributed over a given area (lumens per square meter). Different applications require different lux levels; for instance, task-oriented areas such as kitchens or sewing stations demand higher lux values than general areas like corridors or lobbies.
Correlated Color Temperature (CCT, °K):
CCT describes the color appearance of a light source, expressed in degrees Kelvin (K). Light can range from warm (yellowish), to neutral (off-white), to cool (bluish white), depending on its temperature rating.
Color Rendering Index (CRI):
CRI measures the ability of a light source to render colors accurately compared to natural light. A high CRI (close to 100) indicates that objects appear more true to life, similar to how they would look under sunlight. A lower CRI may cause colors to appear distorted or unnatural.
Beam Angle:
Beam angle refers to the spread of light emitted from a source. A narrow beam (e.g., spotlights) provides focused illumination, ideal for highlighting specific features. A wider beam is better suited for general lighting, creating a more diffuse and ambient effect.
What is LED Lighting?
LED lighting refers to the use of Light Emitting Diodes (LEDs) as a source of illumination. An LED is a semiconductor device that emits light when an electric current passes through it. Unlike traditional lighting technologies such as incandescent or fluorescent lamps, LEDs do not rely on filaments or gas discharge to produce light.
LED lighting is known for its high energy efficiency, long lifespan, durability, and low maintenance requirements. It is available in a wide range of color temperatures, intensities, and form factors, making it suitable for a variety of residential, commercial, and industrial applications.
Benefits of LED Lighting
a. Energy Efficiency:
LEDs consume up to 50% less energy than CFLs, resulting in substantial energy savings and lower electricity bills.
b. Long Lifespan:
LED lights have an exceptionally long operational life, often exceeding 50,000 hours, which greatly reduces maintenance and replacement costs.
c. No Harmful Emissions:
LEDs do not emit ultraviolet (UV) or infrared (IR) radiation, making them safer for sensitive materials and human health.
d. Environmentally Friendly:
LEDs are free from hazardous substances such as mercury, making them a safer and more eco-friendly lighting option.
e. Versatile Color Options:
LED technology allows for the production of millions of color variations, enabling dynamic and customizable lighting solutions for various applications.
How LEDs life is defined?
Unlike conventional lamps that tend to fail suddenly, LEDs gradually depreciate in light output over time. The lifespan of an LED is typically defined by the point at which its luminous flux decreases to 70% of its original output—commonly referred to as L70. This gradual decline ensures more predictable performance and allows for timely maintenance or replacement planning.
Significance of 50000 hrs life
4 hr daily operation : 34 yrs
8 hr daily operation : 17 yrs
12 hr daily operation : 11 yrs
24 hr daily operation : 05 yrs
Challenges with LED Lighting
LEDs are very sensitive to temperature & also produce a lot of heat during operation. This heat should be removed from system to maintain the junction temperature within prescribed limits.
LED are point sources so are prone to cause glare if the optics is not properly designed.
What is the role of heat sink?
Heat sink is required to dissipated heat generated by LEDs during operation. Since ambient temperature in India varies from – 5 0C to + 55 0C so the heat sink design should ensure effective thermal management under all circumstances. It should be made of high grade aluminum & should have no pores (like in gravity die cast heat sinks) providing resistance to heat flow. Garnet uses aluminum pressure die cast or extrusion heat sinks.
