Philips
Philips TUV 16W FAM T5 UV-C Germicidal Lamp – 1Ft 254nm Disinfection Tube for Water, Air & Surface Sterilization
- 15W UV-C disinfection lamp
- 1-foot compact tube design
- Emits 253.7 nm germicidal UV
- Ideal for air and water
- Long-lasting 11,000-hour lifespan
- G5 base for easy installation
Authorised dealer of Philips Lighting
About this item
Philips TUV 16W FAM T5 UV-C Germicidal Lamp – 1Ft 254nm Disinfection Tube for Water, Air & Surface Sterilization

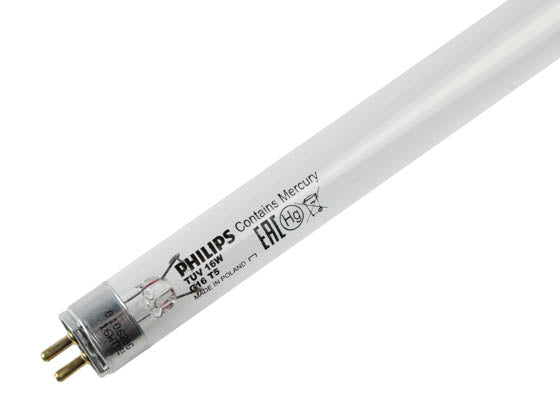

The Philips TUV 16W FAM T5 UV-C Lamp is a compact low-pressure mercury vapor germicidal tube that emits shortwave UV-C radiation at 254 nm, which effectively inactivates bacteria, viruses, and mold spores. With a 1-foot length and T5 (16 mm) diameter, this 16W lamp is ideal for residential, commercial, and industrial UV-C disinfection systems, including air purifiers, water sterilizers, and surface decontamination units. Its high efficiency and reliable performance make it a preferred choice for compact disinfection applications.
Key Features:
-
16W UV-C lamp for high-efficiency sterilization
-
Emits 254 nm UV light – highly effective for killing microorganisms
-
1-foot tube length – fits compact and portable disinfection units
-
T5 diameter (16 mm) – slim and space-saving design
-
Long-lasting quartz tube with low mercury content
-
Philips quality for consistent performance and safety
-
Universal fit for water, air, and surface treatment systems
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | Philips |
| Model | TUV 16W FAM T5 |
| Type | UV-C Germicidal Lamp |
| Power Output | 16 Watts |
| UV Wavelength | 254 nm (germicidal range) |
| Tube Length | Approx. 288 mm (1 foot) |
| Tube Diameter | T5 (16 mm) |
| Base Type | 2-pin (depends on variant: G5 or G23) |
| Average Lifespan | Up to 9,000 hours |
| Operating Position | Universal |
| Technology | Low-pressure mercury discharge |
Ideal Applications:
-
Domestic and industrial air disinfection systems
-
UV-C water purification units (RO + UV filters)
-
Medical equipment disinfection chambers
-
Laboratory biosafety hoods
-
Surface decontamination units
-
OEM UV-C integration
Benefits:
-
Inactivates viruses, bacteria, and spores with high efficiency
-
Compact and slim design fits space-constrained systems
-
Long life reduces maintenance and operating cost
-
Reliable, chemical-free sterilization
-
Backed by Philips' trusted UV-C technology and safety standards
The Philips TUV 16W FAM T5 UV-C Lamp offers compact, efficient, and long-lasting disinfection for air, water, and surfaces. It’s an ideal choice for safe, effective sterilization across residential, medical, and industrial environments.
Subtle Sophistication, Radiant Results
Let Lighting transform your space with understated brilliance. Lighting redefines elegance with lighting solutions that blend seamlessly into any décor. Designed for modern spaces, our lights offer understated style while delivering powerful, radiant illumination.
Choose the Right Light Color
Choose the perfect lighting for your space! Our LED solutions offer colour temperatures ranging from 3000K to 6500K. For a cosy, warm glow, go with 3000K. If you prefer a bright, cool white lighting, then 6500K is the way to go. For Natural white go with 4000K.
Frequently Asked Questions
Get Your Queries Answered
Fundamental Lighting Terms
Lumen (lm):
A lumen is the unit of luminous flux, representing the total amount of visible light emitted by a light source.
Efficacy (lm/W):
Efficacy measures how efficiently a lighting source converts electrical power (watts) into visible light (lumens). Higher efficacy indicates better performance. For example, LEDs can exceed 150 lm/W, whereas traditional incandescent lamps (GLS) offer around 10 lm/W, and compact fluorescent lamps (CFLs) about 60 lm/W.
Lux (lm/m²):
Lux is the unit of illuminance and indicates the amount of luminous flux distributed over a given area (lumens per square meter). Different applications require different lux levels; for instance, task-oriented areas such as kitchens or sewing stations demand higher lux values than general areas like corridors or lobbies.
Correlated Color Temperature (CCT, °K):
CCT describes the color appearance of a light source, expressed in degrees Kelvin (K). Light can range from warm (yellowish), to neutral (off-white), to cool (bluish white), depending on its temperature rating.
Color Rendering Index (CRI):
CRI measures the ability of a light source to render colors accurately compared to natural light. A high CRI (close to 100) indicates that objects appear more true to life, similar to how they would look under sunlight. A lower CRI may cause colors to appear distorted or unnatural.
Beam Angle:
Beam angle refers to the spread of light emitted from a source. A narrow beam (e.g., spotlights) provides focused illumination, ideal for highlighting specific features. A wider beam is better suited for general lighting, creating a more diffuse and ambient effect.
What is LED Lighting?
LED lighting refers to the use of Light Emitting Diodes (LEDs) as a source of illumination. An LED is a semiconductor device that emits light when an electric current passes through it. Unlike traditional lighting technologies such as incandescent or fluorescent lamps, LEDs do not rely on filaments or gas discharge to produce light.
LED lighting is known for its high energy efficiency, long lifespan, durability, and low maintenance requirements. It is available in a wide range of color temperatures, intensities, and form factors, making it suitable for a variety of residential, commercial, and industrial applications.
Benefits of LED Lighting
a. Energy Efficiency:
LEDs consume up to 50% less energy than CFLs, resulting in substantial energy savings and lower electricity bills.
b. Long Lifespan:
LED lights have an exceptionally long operational life, often exceeding 50,000 hours, which greatly reduces maintenance and replacement costs.
c. No Harmful Emissions:
LEDs do not emit ultraviolet (UV) or infrared (IR) radiation, making them safer for sensitive materials and human health.
d. Environmentally Friendly:
LEDs are free from hazardous substances such as mercury, making them a safer and more eco-friendly lighting option.
e. Versatile Color Options:
LED technology allows for the production of millions of color variations, enabling dynamic and customizable lighting solutions for various applications.
How LEDs life is defined?
Unlike conventional lamps that tend to fail suddenly, LEDs gradually depreciate in light output over time. The lifespan of an LED is typically defined by the point at which its luminous flux decreases to 70% of its original output—commonly referred to as L70. This gradual decline ensures more predictable performance and allows for timely maintenance or replacement planning.
Significance of 50000 hrs life
4 hr daily operation : 34 yrs
8 hr daily operation : 17 yrs
12 hr daily operation : 11 yrs
24 hr daily operation : 05 yrs
Challenges with LED Lighting
LEDs are very sensitive to temperature & also produce a lot of heat during operation. This heat should be removed from system to maintain the junction temperature within prescribed limits.
LED are point sources so are prone to cause glare if the optics is not properly designed.
What is the role of heat sink?
Heat sink is required to dissipated heat generated by LEDs during operation. Since ambient temperature in India varies from – 5 0C to + 55 0C so the heat sink design should ensure effective thermal management under all circumstances. It should be made of high grade aluminum & should have no pores (like in gravity die cast heat sinks) providing resistance to heat flow. Garnet uses aluminum pressure die cast or extrusion heat sinks.
